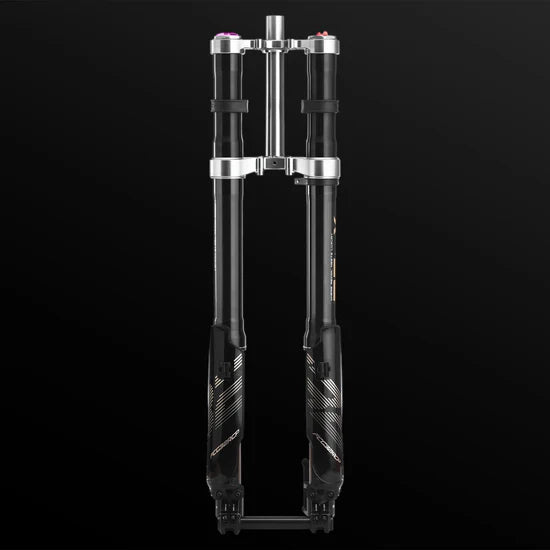

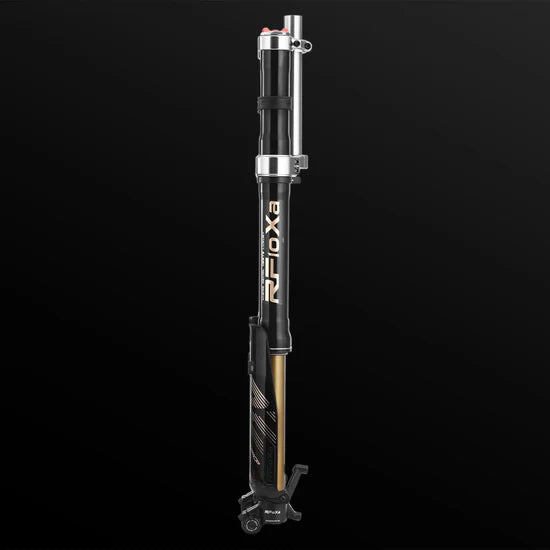

RFloXa Hawk32 Fork

About This Item

① Balanced E-Moto Performance — The RFLoXa Hawk 32 front fork is engineered for electric dirt bikes and downhill-style riding, offering 203mm of travel and a stable, confidence-inspiring feel for trail, track, and jump-focused riding. With a 37mm stanchion diameter and 74mm caliper mount spacing, it supports 203mm disc brakes, with upgrade options available.

② Inverted Suspension Design — An inverted oil-spring damping system with an asymmetrical left and right leg layout delivers controlled compression, predictable rebound, and consistent performance across varying terrain and riding conditions.

③ Durable Construction — Built with AL6061-T6 forged aluminum lower brackets and AL7075-T6 aluminum fork tubes, the Hawk 32 balances strength, durability, and weight. A 55CRSI spring wire ensures long-term reliability under regular off-road use.

④ Manual Adjustability — Multi-stage compression damping, rebound damping, and spring preload adjustments allow riders to dial in their suspension setup based on rider weight, terrain, and riding style.

⑤ Bottom-Out Control — An internal oil pressure bottom-out design helps reduce harsh impacts at full compression, improving stability and control during aggressive riding or larger jumps.

⑥ Consistent Damping Performance — Dual compression valve plates and high-quality shock oil help maintain smooth, reliable damping performance across temperature changes and extended ride sessions.

Fitment

• Talaria MX3 / MX4 / XXX / XXX Pro

• SurRon LBX / LBS / L1E

• E-Ride Pro S / SS 1.0 / 2.0

• Rawrr Mantis / Mantis X

• 79 Bike Falcon M / PRO / GT

• Ventus One

• Ventus One Plus (requires 8mm spacer for installation)

• RFN Apollo

• Rerode R1

• SRPNTMOTO

Spring Weight Guide

• 45lb Spring: ≤85kg

• 60lb Spring: 85kg–130kg (recommended for frequent jumps)

• 45–60lb Progressive Spring: 80kg–130kg

Features

• Center Distance: 750mm

• Main Piston Travel: 203mm

• Tube Diameter: Ø37mm

• Caliper Mount Spacing: 74mm

• Disc Brake Size: Ø203mm (Upgradeable)

• Suitable For: Electric Dirt Bikes, Downhill Bikes

• Damping System: Inverted Oil-Spring

• Adjustments: Multi-stage Compression, Rebound, Spring Preload

• Materials:

  • AL6061-T6 Forged Aluminum Alloy Bottom Brackets

  • AL7075-T6 Aluminum Fork Tubes

• Spring Wire: 55CRSI
